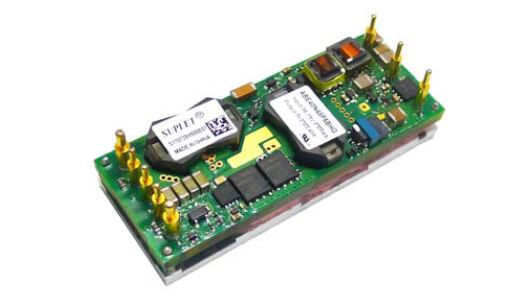

ABE40N48P5BHG
ABE40N48P5 Series power modules are eighth-brick DC/DC converters that provide high efficiency single output. They can
operate from 36Vdc to 75Vdc input and 5Vdc/40A output. The output can be trimmed from -20% to +10% of nominal output
voltage. The remote control option is negative logic. The converter turns on when the REM pin is at logic low (0-1.2Vdc) and
turns off when it is at logic high (3.5-20Vdc) or left open. The output voltage trim logic is positive. The output voltage will increase
when the TRIM pin is connected to “+S” and decrease when connected to “-S”.
operate from 36Vdc to 75Vdc input and 5Vdc/40A output. The output can be trimmed from -20% to +10% of nominal output
voltage. The remote control option is negative logic. The converter turns on when the REM pin is at logic low (0-1.2Vdc) and
turns off when it is at logic high (3.5-20Vdc) or left open. The output voltage trim logic is positive. The output voltage will increase
when the TRIM pin is connected to “+S” and decrease when connected to “-S”.
