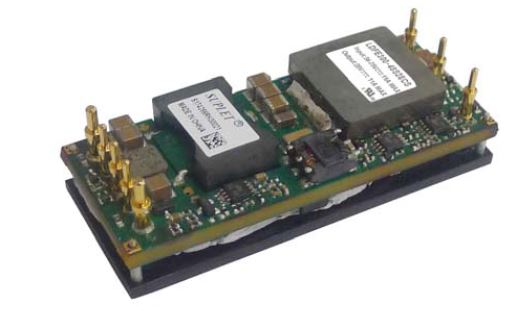

LDFE300-48S28CS series are Eighth-brick DC/DC converters that provide high efficiency single output. They can operate
from 36Vdc to 75Vdc input and 28V/11A output. The output can be trimmed from (14Vdc~33Vdc) of normal output voltage.
The remote control option is positive logic. The converter turns off when the REM pin is at logic low and turns on when it at
logic high, both are referenced to -Vin. The converter is on when the REM pin is left open. The output voltage trim option is
positive. The output voltage will increase when the TRIM pin connected to +S pin and decrease when it connected to -S pin.
