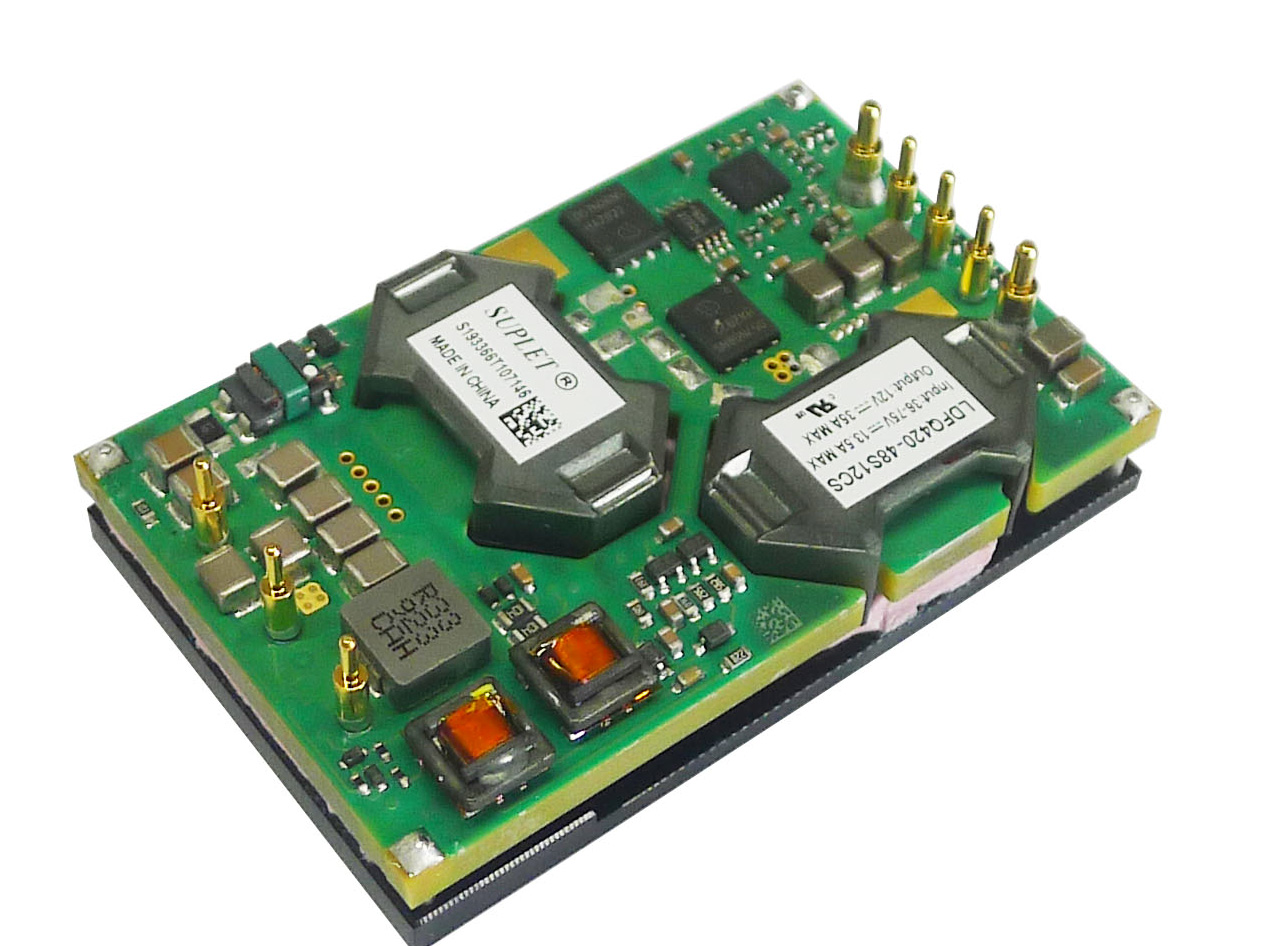

LDFQ420-48S12CS
LDFQ420-48S12CS series power module is a Quarter-brick DC/DC converter provides high efficiency single output, which makes
it an ideal choice for optimum space. It can operate from 36-75Vdc input and provide up to 35A output current. The output can be
trimmed from -20% to +10% of normal output voltage. The remote control option is positive logic. The converter turns on when
the REM pin is at logic high and turns off when at logic low, both are referenced to -Vin. The converter is on when the REM pin
is left open. The output voltage trim option is positive. The output voltage will increase when the TRIM pin connected to +S pin
and decrease when it connected to -S pin.
it an ideal choice for optimum space. It can operate from 36-75Vdc input and provide up to 35A output current. The output can be
trimmed from -20% to +10% of normal output voltage. The remote control option is positive logic. The converter turns on when
the REM pin is at logic high and turns off when at logic low, both are referenced to -Vin. The converter is on when the REM pin
is left open. The output voltage trim option is positive. The output voltage will increase when the TRIM pin connected to +S pin
and decrease when it connected to -S pin.
