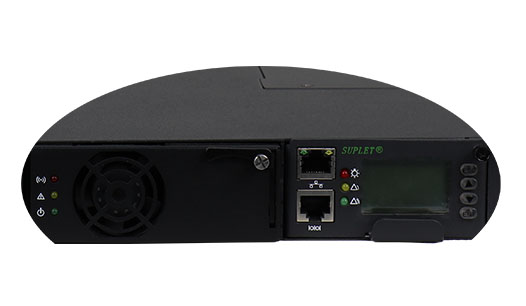

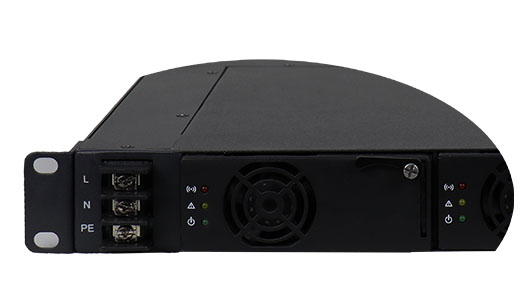

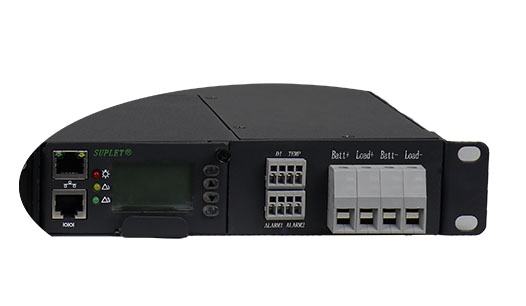

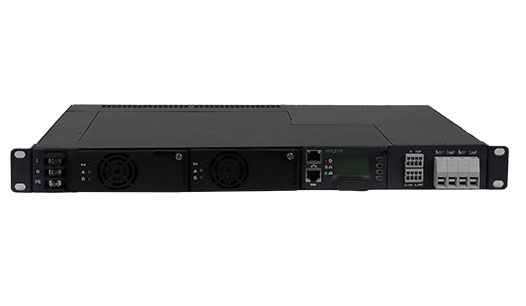

STP48100-H1C1D1 Power System is a 19" 1U rack-mount power system. It provides DC power by using two SR4850M-1U rectifiers; the battery can be shut down by BLVD located in the shelf inside while DC voltage is less than the battery protection voltage. The system is supported by a single CAS-02 monitor that provides all control and operational conditions, as well as alarms and output parameter configuration. It t is designed for the harsh outside environment.
◆ Wide single phase input:90VAC-300VAC, Output 42~58Vdc, 100A.
◆ High efficiency>95％
◆ High reliability, High power density, Hot-plug
◆ Operation Temperature Range:-40 °C- +75 °C
◆ 1U height shelf
