Description

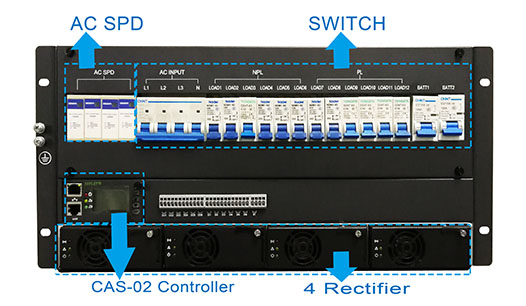

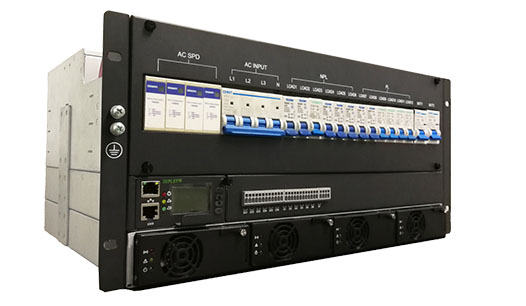

The three-phase input power system is optimized for the demanding power needs of wireless communications, enterprise, and broadband access equipment. the power system can provide up to 11600 Watts of power and operate up to 75ºC. The small size can free up space to reduce system size. It is designed to operate as an integral component in telecommunication. It is extremely flexible and can be applied as a stand-alone module.

System Features

u  Wide three-phase input:90VAC-300VAC

u  42-58Vdc Output

u  200A current output

u  class C SPD

u  2*125A battery input

u  High reliability

u  Hot-plug

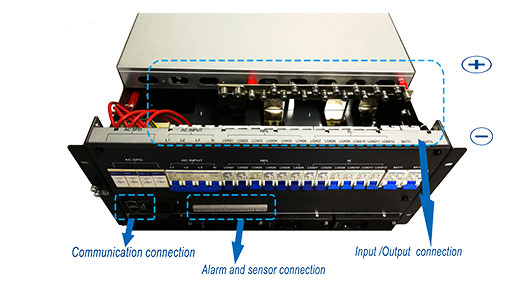

u  TCP/IP,RS232/RS485 Communication

u  Operation Temperature Range: -40°C~+75°C

u  19” cabinet mounting 5U height
